Tilebox supports user-defined progress indicators during the execution of a job. This can be useful to provide visibility into the execution and the expected duration of a job, especially for longer running jobs.
Tilebox Workflows progress indicators

​
Tracking Progress

Progress indicators in Tilebox use a done / total model. Tasks can increase a total value to specify the total work to be done, and the same or any other task can increase a done counter to track the amount of work that has already been completed. Progress tracking is always done at a task level. Each task can report its progress updates, as increases in done and total independently, and the job’s total progress is the sum of all tasks’ progress.
from tilebox.workflows import Task, ExecutionContext

class ProgressRootTask(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # report that 10 units of work need to be done
        context.progress().add(self.n)

        for _ in range(self.n):
            context.submit_subtask(ProgressSubTask())

class ProgressSubTask(Task):
    def execute(self, context: ExecutionContext) -> None:
        # report that one unit of work has been completed
        context.progress().done(1)

​
Multiple Progress Indicators

A job can have multiple independent progress indicators. This is useful when a job consists of multiple steps, that each benefits from having its own progress indicator. To create a new progress indicator, call context.progress(name) with a unique name for the indicator.
class MultiProgressWorkflowRoot(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # initialize a progress indicator for the finalize task
        context.progress("finalize").add(1)

        process = context.submit_subtask(Process(self.n))
        context.submit_subtask(Cleanup(), depends_on=[process])

class Process(Task):
    n: int

    def execute(self, context: ExecutionContext) -> None:
        # initialize two progress indicators for the two steps,
        # with a total work of n for each
        context.progress("step1").add(self.n)
        context.progress("step2").add(self.n)

        # now submit N subtasks for the two steps
        for _ in range(self.n):
            step1 = context.submit_subtask(Step1())
            context.submit_subtask(Step2(), depends_on=[step1])

class Step1(Task):
    def execute(self, context: ExecutionContext) -> None:
        # 1 unit of work for step1 is done
        context.progress("step1").done(1)


class Step2(Task):
    def execute(self, context: ExecutionContext) -> None:
        # 1 unit of work for step2 is done
        context.progress("step2").done(1)

class Finalize(Task):
    def execute(self, context: ExecutionContext) -> None:
        # finalize is done
        context.progress("finalize").done(1)

​
Querying Progress

At any time during a job’s execution, you can query the current progress of a job using the find method on the job client. The returned job object contains a progress field that contains the current progress of the job.
job = job_client.find(job_id)
for indicator in job.progress:
    print(f"{indicator.label}: {indicator.done}/{indicator.total}")
Output
finalize: 1/1
step1: 4/4
step2: 4/4

​
Progress Display in interactive environments

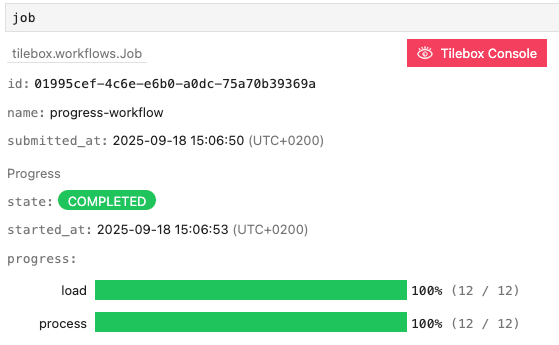

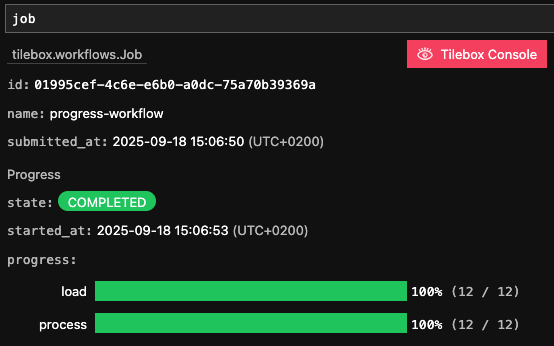

When running in an interactive environment such as a Jupyter notebook and the cell output is a Tilebox job object, the job is automatically rendered, including its progress indicators.
job = job_client.find(job_id)
job  # trigger notebook cell output
Tilebox Workflows job object as Jupyter Cell output

​
Progress idempotency

Since tasks may fail and can subsequently be retried, it’s possible that a task is executed more than once. This means that a task may report progress more than once. To avoid double-counting such progress updates, Tilebox only considers the progress reported by the last execution of a task.
