Overview

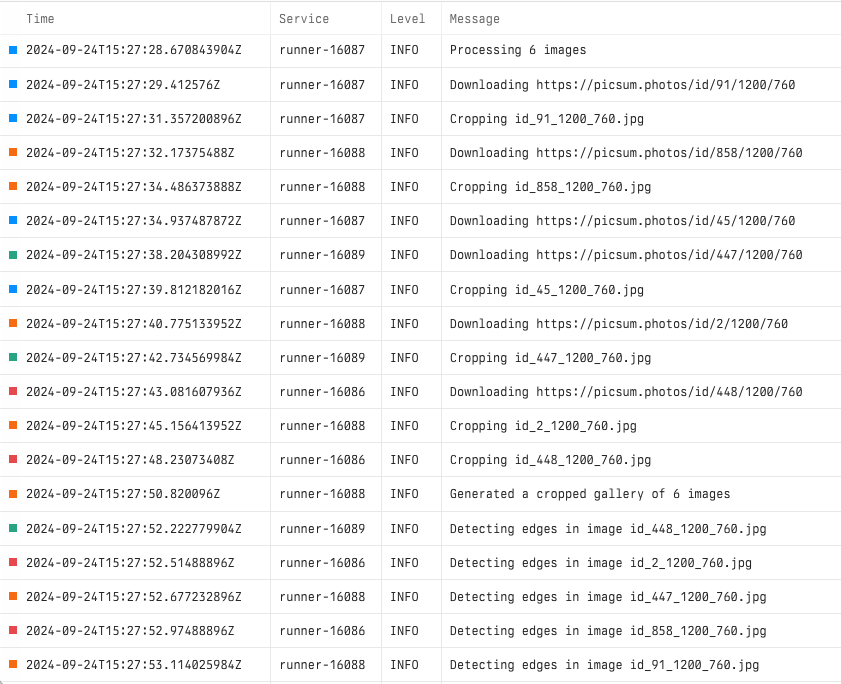

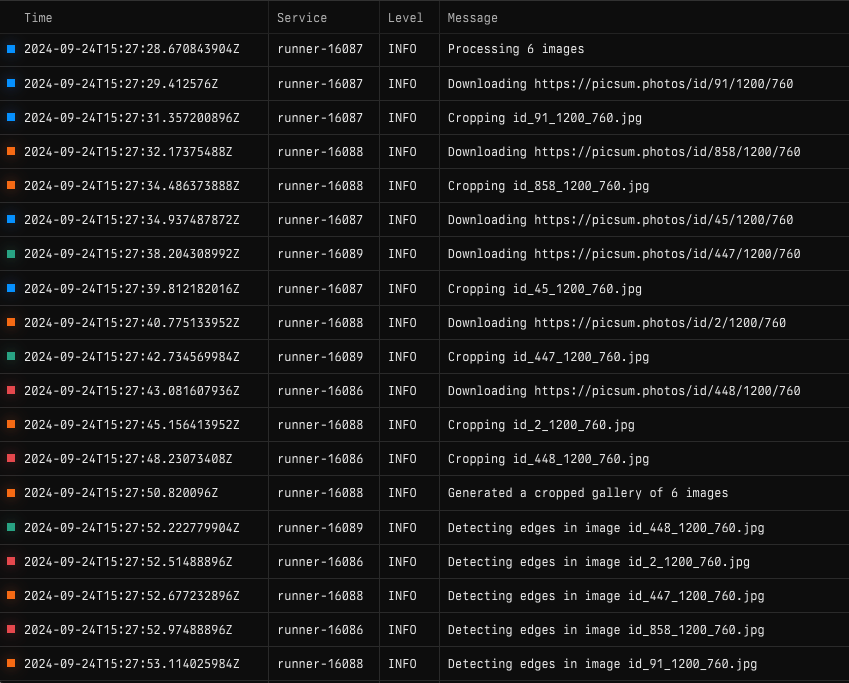

Since Tilebox workflows are designed to be executed in a distributed fashion, properly setting up logging to a centralized logging system is a key aspect. Tilebox comes with built-in support for OpenTelemetry logging, which is an easy and convenient way to log messages from your tasks, and export them to a backend of your choice. Collecting and visualizing logs from a distributed cluster of task runners and visualizing them in a tool such as Axiom might look like the following:

Configure logging

The Tilebox workflow SDKs contain built-in support for exporting open telemetry logs. To enable logging, simply call the corresponding configuration functions during the start up of your task runner and then use to Tilebox provided logger to emit log messages from your tasks.

To configure logging with Axiom, you first need to create a Axiom Dataset to export Tilebox workflow logs to. Additionally, an API key with ingest permissions to that dataset is required.

Python
from tilebox.workflows import Client, Task, ExecutionContext
from tilebox.workflows.observability.logging import configure_otel_logging_axiom

# your own workflow:
from my_workflow import MyTask

def main():
    configure_otel_logging_axiom(
        # specify an axiom dataset to export logs to
        dataset="my-axiom-logs-dataset",
        # along with an axiom api key with ingest permissions to that dataset
        api_key="my-axiom-api-key",
    )

    # below task runner will export logs from
    # the tasks it executes to the specified axiom dataset
    client = Client()
    runner = client.runner("dev-cluster", tasks=[MyTask])
    runner.run_forever()

if __name__ == "__main__":
    main()

If you set environment variables AXIOM_API_KEY and AXIOM_LOGS_DATASET you can omit those arguments to the configure_otel_logging_axiom function.

Emitting log messages

The Tilebox SDKs provide a logger that can be used to emit log messages from your tasks. Use it within a tasks execute method to emit log messages to the configured logging backend.

Python
import logging
from tilebox.workflows import Task, ExecutionContext
from tilebox.workflows.observability.logging import get_logger

class MyTask(Task):
    def execute(self, context: ExecutionContext) -> None:
        # emit a log message to the configured open telemetry backend
        logger.info("Hello world from configured logger!")

The logger is a global singleton, so you can use it anywhere in your workflow. If you want to use a different logger for a specific task, you can create a new logger using the get_logger function.

Logging task runner internals

Tilebox Task runners also use such a logger internally. By default it’s configured to the WARNING level, but you can change this by explicitly configuring a logger for the workflows client constructing the task runner.

Python
from tilebox.workflows import Client

from tilebox.workflows.observability.logging import configure_otel_logging_axiom
from tilebox.workflows.observability.logging import get_logger

# configure axiom or any other logging backend
configure_otel_logging_axiom(
    dataset="my-axiom-logs-dataset",
    api_key="my-axiom-api-key",
)

# configure a logger for the Tilebox client, with a level of INFO
client = Client()
client.configure_logger(get_logger(level=logging.INFO))

# now the task runner will inherit this logger and use
# it to emit its own, internal log messages as well
runner = client.runner("dev-cluster", tasks=[MyTask])
runner.run_forever()
